EDA Framework

The exploratory data analysis (EDA) module of the flood frequency analysis (FFA) framework allows users to run statistical tests on annual maximum streamflow (AMS) data. These statistical tests have four purposes:

Identify change points ("jumps" or "kinks") in the AMS data.
Identify serial correlation in the AMS data.
Identify trends in the mean value of the AMS data.
Identify trends in the variability of the AMS data.

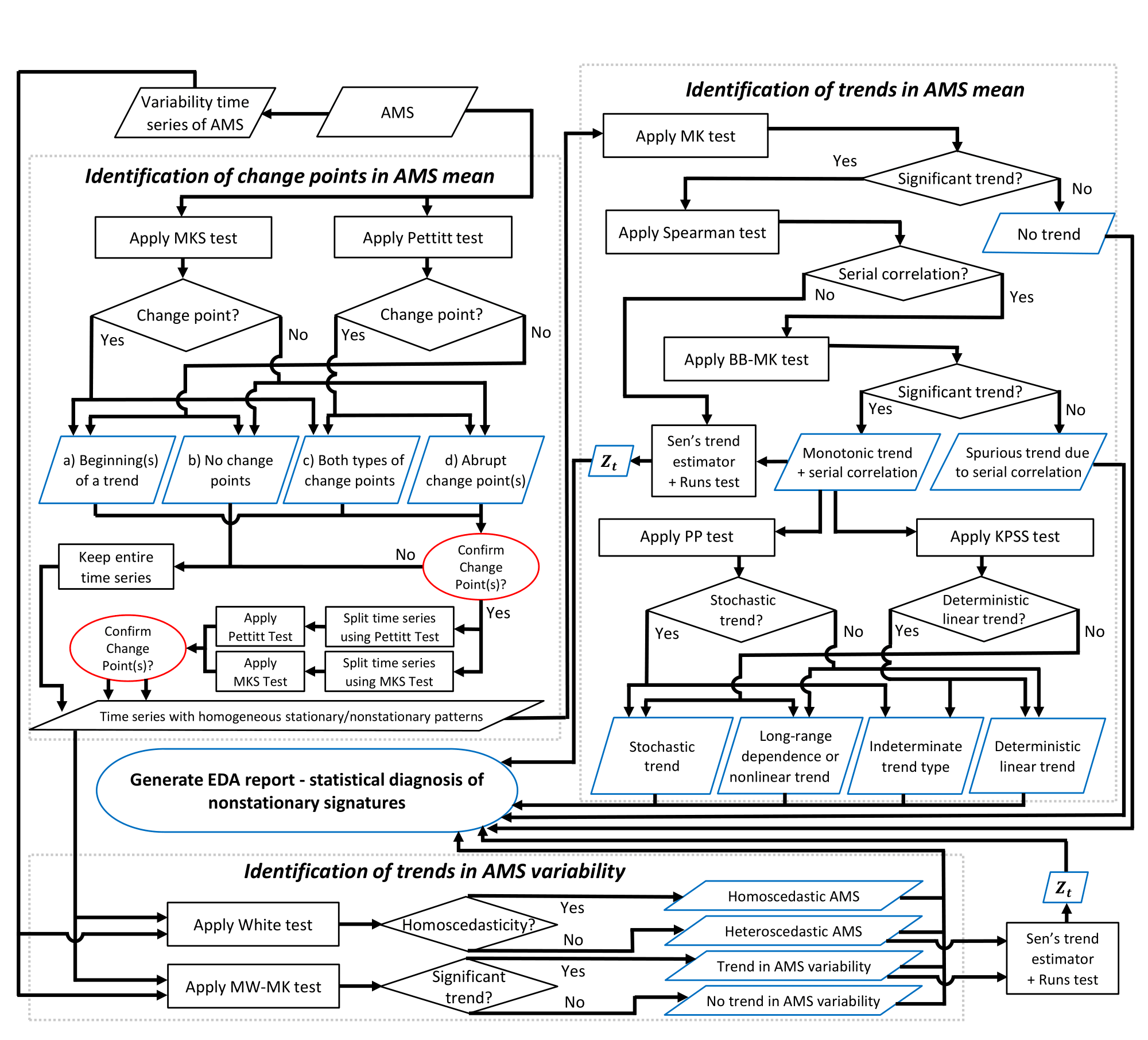

A diagram showing the current EDA framework is shown below:

Diagram showing current EDA framework.

List of Statistical Tests

BB-MK Test

The Block Bootstrap Mann-Kendall (BB-MK) Test is used to assess whether there is a statistically significant monotonic trend in a time series.

Unlike the MK test, the BB-MK test is insensitive to autocorrelation.

Null hypothesis: There is no monotonic trend.
Alternative hypothesis: There is a monotonic upwards or downwards trend.

To carry out the BB-MK test, we rely on the results of the MK test and Spearman test.

Compute the MK test statistic.
Find the least significant lag \(k\) using the Spearman test.
Resample from the original time series in blocks of size \(k+1\), without replacement.
Estimate the MK test statistic for each bootstrapped sample.
Derive the empirical distribution of the MK test statistic from the bootstrapped statistics.
Estimate the significance of the observed test statistic using the empirical distribution.

KPSS Test

The KPSS Test is used to identify if an autoregressive time series has a unit root.

Null hypothesis: The time series does not have a unit root and is trend-stationary.
Alternative hypothesis: The time series has a unit root and is non-stationary.

Precisely, the autoregressive time series shown below has unit root if \(\sigma_{v}^2 > 0\):

\[ \begin{align} y_{t} &= \mu_{t} + \beta t + \epsilon_{t} \\[5pt] \mu_{t} &= \mu_{t-1} + v_{t} \\[5pt] v_{t} &\sim \mathcal{N}(0, \sigma_{v}^2) \end{align} \]

Here is what each term in this formulation represents:

\(\mu_{t}\) is the drift, or the deviation of \(y_{t}\) from \(0\). Under the null hypothesis, \(\mu_{t}\) is constant (since \(v_{t}\) is constant). Under the alternative hypothesis, \(\mu_t\) is a stochastic process with unit root.
\(\beta t\) is a linear trend, which represents deterministic non-stationarity (i.e. climate change).
\(\epsilon_{t}\) is stationary noise, corresponding to reversible fluctuations in \(y_{t}\). In hydrology, \(\epsilon_{t}\) represents fluctuations in streamflow due to random events (i.e. weather).
\(v_{t}\) is random walk innovation, or irreversible fluctuations in \(\mu_{t}\). In hydrology, \(v_{t}\) could represent randomness in industrial activity causing climate change.

To conduct the test, we fit a linear model to \(y_{t}\) and get the residuals \(\hat{r}_{t}\) Then, we compute the cumulative partial-sum statistics \(S_{k}\) using the following formula:

\[ S_{k} = \sum_{t=1}^{k} \hat{r}_{t} \]

Under the null hypothesis, \(S_{k}\) will behave like a random walk with finite variance. If \(y_{t}\) has a unit root, then the sums will "drift" too much.

Next, we estimate the long-run variance of the time series, accounting for autocovariance. To do this, we first compute the sample autocovariances \(\gamma_{j}\) for up to \(q\) lags, where:

\[ q = \left\lfloor \frac{3\sqrt{n}}{13} \right\rfloor \]

The sample autocovariance \(\gamma_{j}\) is a measure of the correlation between the time series \(y_{t}\) and the shifted time series \(y_{t-j}\). Each sample autocovariance \(\gamma_{j}\) for \(j = 0, 1, \dots, q\) is computed as follows:

\[ \hat{\gamma}_{j} = \frac{1}{n} \sum_{t = j + 1}^{n} \hat{r}_{t}\hat{r}_{t-j} \]

Finally, we estimate the long-run variance \(\hat{\lambda}^2\) using a Newey-West style estimator. This estimator corrects for the additional variability in \(\epsilon_{t}\) caused by autocorrelation and heteroskedasticity.

\[ \hat{\lambda}^2 = \hat{\gamma}_{0} + 2\sum_{j=1}^{q} \left(1 - \frac{j}{q + 1} \right) \gamma_{j} \]

Then, we compute the test statistic \(z_{K}\) using the following formula:

\[ z_{K} = \frac{1}{n^2\hat{\lambda }^2}\sum_{k=1}^{n} S_{k}^2 \]

The test statistic \(z_{K}\) is not normally distributed. Instead, we compute the p-value by interpolating a table from Hobjin et al. (2004). This table is shown below for various quantiles \(q\).

\(q\)	0.90	0.95	0.975	0.99
Statistic	0.119	0.146	0.176	0.216

Warning: The interpolation procedure discussed above only works for \(0.01 < p < 0.10\). Therefore, p-values below \(0.01\) and above \(0.10\) will be truncated and it is required that \(0.01 < \alpha < 0.1\).

Mann-Kendall Test

The Mann-Kendall Test is used to assess whether there is a statistically significant monotonic trend in a time series. The test requires that when no trend is present, the data is independent and identically distributed.

Null hypothesis: There is no monotonic trend.
Alternative hypothesis: There is a monotonic upwards or downwards trend.

Define \(\text{sign} (x)\) to be \(1\) if \(x > 0\), \(0\) if \(x = 0\), and \(-1\) otherwise.

The test statistic \(S\) is defined as follows:

\[ S = \sum_{k-1}^{n-1} \sum_{j - k + 1}^{n} \text{sign} (y_{j} - y_{k}) \]

Next, we need to compute \(\text{Var}(S)\), which depends on the number of tied groups in the data. Let \(g\) be the number of tied groups and \(t_{p}\) be the number of observations in the \(p\)-th group.

\[\text{Var}(S) = \frac{1}{18} \left[n(n-1)(2n + 1) - \sum_{p-1}^{g} t_{p}(t_{p} - 1)(2t_{p} + 5) \right]\]

Then, compute the MK test statistic, \(Z_{MK}\), as follows:

\[ Z_{MK} = \begin{cases} \frac{S-1}{\sqrt{\text{Var}(S)}} &\text{if } S > 0 \\ 0 &\text{if } S = 0 \\ \frac{S+1}{\sqrt{\text{Var}(S)}} &\text{if } S < 0 \end{cases} \]

For a two-sided test, we reject the null hypothesis if \(|Z_{MK}| \geq Z_{1 - (\alpha/2) }\) and conclude that there is a statistically significant monotonic trend in the data. For more information, see here.

Mann-Kendall-Sneyers Test

The Mann-Kendall-Sneyers (MKS) Test is used to identify the beginning of a trend in a time series:

Null hypothesis: There are no change points in the time series.
Alternative hypothesis: There are one or more change points in the time series.

Define \(\mathbb{I}(y_{i} > y_{j})\) to be \(1\) if \(y_{i} > y_{j}\) and \(0\) otherwise.

Given a time series \(y_{1}, \dots, y_{n}\), we compute the following test statistic:

\[ S_{t} = \sum_{i=i}^{t} \sum_{j=1}^{i-1} \mathbb{I}(y_{i} > y_{j}) \]

Then, we compute the the progressive series \(UF_{t}\):

\[ UF_{t} = \frac{S_{t} - \mathbb{E}[S_{t}]}{\sqrt{\text{Var}\,(S_{t})}} \]

Next, we reverse the time series to create a new time series \(y'\) such that \(y_{i}' = y_{n+1-i}\).

Then, we use formula (1) to compute \(S_{t}'\) for \(y'\) and reverse \(S_{t}'\) to get \(S_{t}''\) .

The regressive series \(UB_{t}\) is defined as follows:

\[ UB_{t} = \frac{S_{t}'' - \mathbb{E}[S_{t}'']}{\sqrt{\text{Var}\,(S_{t}'')}} \]

For both the progressive and regressive series, the expectation and variance is as follows:

\[ \mathbb{E}[S_{t}] = \mathbb{E}[S_{t}''] = \frac{t(t-1)}{4}, \quad \text{Var}(S_{t}) = \text{Var}(S_{t}'') = \frac{t(t-1)(2t+5)}{72} \]

Finally, we plot \(UF_{t}\) and \(UB_{t}\) with confidence bounds at \(\pm z_{1 - (\alpha/2)}\), where \(\alpha\) is the chosen significance level. A crossing point between \(UF_{t}\) and \(UB_{t}\) that lies outside the confidence bounds indicates the start of the trend.

MW-MK Test

The Moving Window Mann-Kendall (MW-MK) Test is used to identify a statistically significant monotonic trend in the variances of an AMS time series.

Null hypothesis: There is no significant trend in the variance of the AMS.
Alternative hypothesis: There is a significant trend in the variance of the AMS.

To compute the AMS variances we use a moving window:

Set the length of the moving window \(w\) and the step size \(s\).
Compute the standard deviation over indices \([1, w]\).
Move the window forward by \(s\).
Check if the right boundary is beyond the end of the data. If not, go to (5).
Compute the standard deviation again. Return to (3).

Then, we perform the Mann-Kendall Test on the time series of variances.

For more information about the Mann-Kendall test, see here.

Pettitt Test

The Pettitt Test is used to identify abrupt changes in the mean of a time series.

Null hypothesis: There are no abrupt changes in the time series mean.
Alternative hypothesis: There is one abrupt change in the time series mean.

Define \(\text{sign}(x)\) to be \(1\) if \(x > 0\), \(0\) if \(x = 0\), and \(-1\) otherwise.

Given a time series \(y_{1}, \dots, y_{n}\), compute the following test statistic:

\[ U_{t} = \sum_{i=1}^{t} \sum_{j=t+1}^{n} \text{sign} (y_{j} - y_{i}), \quad K = \max_{t}|U_{t}| \]

The value of \(t\) such that \(U_{t} = K\) is a potential change point. The p-value of the potential change point can be approximated using the following formula for a one-sided test:

\[ p \approx \exp \left(-\frac{6K^2}{n^3 + n^2}\right) \]

If the p-value is less than the significance level \(\alpha\), we reject the null hypothesis and conclude that there is evidence for an abrupt change in the mean at the potential change point.

Phillips-Perron Test

The Phillips-Perron (PP) Test is used to identify if an autoregressive time series \(y_t\) has a unit root.

Null hypothesis: \(y_{t}\) has a unit root and is thus non-stationary.
Alternative hypothesis: \(y_{t}\) does not have a unit root and is trend-stationary.

Precisely, let \(x_{t}\) be an AR(1) model. Let \(y_{t}\) be a function of \(x_{t}\) with drift \(\beta_{0}\) and trend \(\beta_{1} t\).

\[ \begin{align} y_{t} &= \beta_{0} + \beta_{1} t + x_{t} \\[5pt] x_{t} &= \rho x_{t-1} + \epsilon_{t} \end{align} \]

If \(\rho = 1\), then \(x_t\) and hence \(y_t\) has a unit root (null hypothesis).
If \(\rho < 1\), then \(y_t\) is trend stationary (alternative hypothesis).

To perform the test, we begin by fitting an autoregressive linear model to \(y_{t}\). Let \(\hat{r}_{t}\) be the residuals of this model. From this model, we can determine \(\hat{\rho}\) (the estimated coefficient on \(y_{t-1}\)) and \(\text{SE}(\hat{\rho})\) (its standard error). Let \(\hat{\sigma}^2\) be the variance of the residuals, computed using the following formula:

\[ \hat{\sigma^2} = \frac{1}{n - 3} \sum_{t=1}^{n} \hat{r}_{t}^2 \]

In the equation above, \(n\) is the number of data points in the sample. We have \(n-3\) degrees of freedom since there are three parameters in the autoregressive model (\(\beta_{0}\), \(\beta_{1}\), and \(\rho\)).

Next, we compute the sample autocovariances \(\gamma_{j}\) for up to \(q\) lags, where:

\[ q = \left\lfloor \sqrt[4]{\frac{n}{25}}\right\rfloor \]

The sample autocovariance \(\gamma_{j}\) is a measure of the correlation between the time series \(y_{t}\) and the shifted time series \(y_{t-j}\). Each sample autocovariance \(\gamma_{j}\) for \(j = 0, 1, \dots, q\) is computed as follows:

\[ \hat{\gamma}_{j} = \frac{1}{n} \sum_{t = j + 1}^{n} \hat{r}_{t}\hat{r}_{t-j} \]

Finally, we estimate the long-run variance \(\hat{\lambda}^2\) using a Newey-West style estimator. This estimator corrects for the additional variability in \(\epsilon_{t}\) caused by autocorrelation and heteroskedasticity.

\[ \hat{\lambda}^2 = \hat{\gamma}_{0} + 2\sum_{j=1}^{q} \left(1 - \frac{j}{q + 1} \right) \gamma_{j} \]

Then, we compute the test statistic \(z_{\rho}\) using the following formula:

\[ z_{\rho } = n(\hat{\rho} - 1) - \frac{n^2 \text{SE}(\hat{\rho})^2}{2 \hat{\sigma}^2}(\hat{\lambda }^2 - \hat{\gamma}_{0}) \]

The test statistic \(z_{\rho}\) is not normally distributed. Instead, we compute the p-value by interpolating a table from Fuller, W. A. (1996). This table is shown below for sample sizes \(n\) and quantiles \(q\):

\(n\) \ \(q\)	0.01	0.025	0.05	0.10	0.50	0.90	0.95	0.975	0.99
25	-22.5	-20.0	-17.9	-15.6	-8.49	-3.65	-2.51	-1.53	-0.46
50	-25.8	-22.4	-19.7	-16.8	-8.80	-3.71	-2.60	-1.67	-0.67
100	-27.4	-23.7	-20.6	-17.5	-8.96	-3.74	-2.63	-1.74	-0.76
250	-28.5	-24.4	-21.3	-17.9	-9.05	-3.76	-2.65	-1.79	-0.83
500	-28.9	-24.7	-21.5	-18.1	-9.08	-3.76	-2.66	-1.80	-0.86
1000	-29.4	-25.0	-21.7	-18.3	-9.11	-3.77	-2.67	-1.81	-0.88

Warning: The interpolation procedure discussed above only works for \(0.01 < p\). Therefore, p-values below \(0.01\) will be truncated and it is required that \(0.01 < \alpha\).

Sen's Trend Estimator

Sen's Trend Estimator is used to estimate the slope of a regression line. Unlike Least Squares, Sen's trend estimator uses a non-parametric approach which makes it robust to outliers.

To compute Sen's trend estimator we use the following procedure:

Iterate over all pairs of data points \((x_{i}, y_{i})\) and \((x_{j}, y_{j})\).
If \(x_{i} \neq x_{j}\), compute the slope \((y_{j} - y_{i})/(x_{j} - x_{i})\) and add it to a list \(S\).
Sen's trend estimator \(\hat{m}\) is the median of \(S\).

After computing \(\hat{m}\), we can estimate the \(y\)-intercept \(b\) by the median of \(y_{i} - \hat{m}x_{i}\) for all \(i\).

Runs Test

After computing the regression line using Sen's trend estimator, we use the Runs Test to determine whether the residuals from the regression are random. If the Runs test identifies non-randomness in the residuals, it is a strong indication that the non-stationarity in the data is non-linear.

Null hypothesis: The residuals are distributed randomly.
Alternative hypothesis: The residuals are not distributed randomly.

Prior to applying the Runs test, the data is categorized based on whether it is above or below the median. Then, we compute the number of contiguous blocks of \(+\) or \(-\) (or runs) in the data.

Example: Suppose that after categorization, the sequence of data is as follows:

\[ +++--+++-+- \]

This sequence has six runs with length \((3, 2, 3, 1,1, 1)\).

Let \(R\) be the number of runs in \(N\) data points (with category counts \(N_{+}\) and \(N_{-}\)).

Then, under the null hypothesis, \(R\) is asymptotically normal with:

\[ \mathbb{E}[R] = \frac{2N_{+}N_{-}}{N} + 1, \quad \text{Var}(R) = \frac{2N_{+}N_{-}(2N_{+}N_{-} - N)}{N^2(N - 1)} \]

For more information, see the Wikipedia entry or the R Documentation.

Spearman Test

The Spearman Test is used to identify autocorrelation in a time series \(y_{t}\). A significant lag is a number \(i\) such that the correlation between \(y_{t}\) and \(y_{t-i}\) is statistically significant. The least insignificant lag is the largest \(i\) such that all \(j < i\) are significant lags.

Null hypothesis: The least insignificant lag is \(0\).
Alternative hypothesis: The least insignificant lag is greater than \(0\).

To carry out the Spearman test, we use the following procedure:

Compute Spearman's correlation coefficient \(\rho_{i}\) for \(y_{t}\) and \(y_{t-i}\) for all \(0 \leq i < n\).
Determine the \(p\)-value \(p_{i}\) for each correlation coefficient \(\rho _{i}\).
Iterate through \(p_{i}\) to find the largest \(i\) such that \(p_{j} \leq \alpha\) for all \(j \leq i\).
The value of \(i\) found in (3) is the least insignificant lag at confidence level \(\alpha\).

Remark: To compute the \(p\)-value of a correlation coefficient \(\rho _{i}\), first compute:

\[ t_{i}= \rho_{i} \sqrt{\frac{n-2}{1 - \rho _{i}^2}} \]

Then, the test statistic \(t_{i}\) has the \(t\)-distribution with \(n-2\) degrees of freedom.

For more information, see the Wikipedia pages on Autocorrelation and Spearman's Rho.

White Test

The White Test is used to detect changes in the variance of a time series.

Null hypothesis: The variance of the time series is constant (homoskedasticity).
Alternative hypothesis: The variance of the time series is time-dependent (heteroskedasticity).

Consider a simple linear regression model:

\[y_{i} = \beta_{0} + \beta_{1} x_{i} + \epsilon_{i}\]

Use ordinary least squares to fit the model. Then compute the squared residuals:

\[{\hat{r}}_{i}^{2} = (y_{i} - \hat{y}_{i})^{2}\]

Next, fit an auxillary regression model to the squared residuals. This model should include each regressor, the square of each regressor, and the cross products between all regressors. Since \(x\) is our only regressor,

\[{\hat{r}}_{i}^{2} = \alpha_{0} + \alpha_{1}x_{i} + \alpha_{2}x_{i}^{2} + u_{i}\]

Next, we compute the coefficient of determination \(R^2\) for the auxillary model. The test statistic is \(nR^2 \sim \chi_{d}^2\), where \(n\) is the number of observations and \(d = 2\) is the number of regressors, excluding the intercept. If \(nR^2 > \chi^2_{1-\alpha, d}\), we reject the null hypothesis and conclude that the time series exhibits heteroskedasticity.

For more information, the following sources may be useful:

White Test Deep Dive
Marno Verbeek, A Guide to Modern Econometrics (2004)
William H. Greene, Econometric Analysis, 5th Edition (2002)
